Electronic battery isolation extends the life of the UPS batteries, lowering cost of ownership. Other features are a user-friendly touch-screen display and enhanced monitoring capabilities.

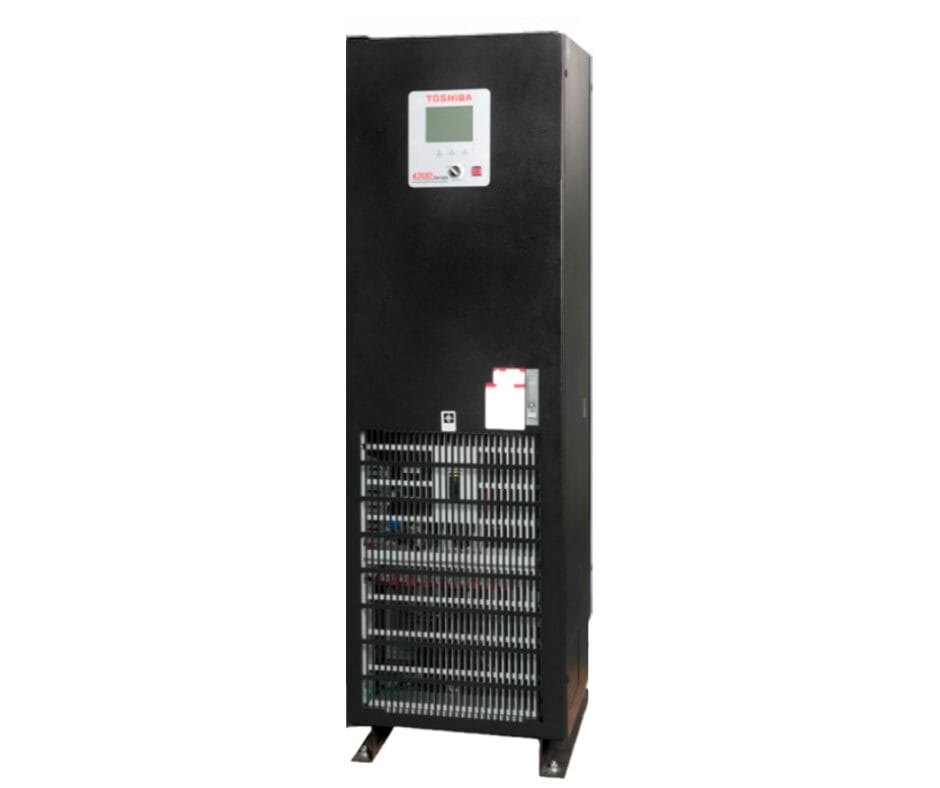

Toshiba 4300(Discontinued)

Model 4300

Electronic Battery Isolation + Small Footprint = Lowering Cost of Ownership

Three phase, double conversion UPS system with complete front access for installation, operation and service. Internal batteries and internal maintenance bypass switch for minimal footprint.

Front-end for Service & Maintenance

With front-access maintenance, the Toshiba 4300 Series makes servicing easier and faster, helping keep critical systems online while reducing downtime during routine inspections or repairs.

Monitoring & System Awareness

Integrated monitoring and alarm functions provide real-time visibility into UPS operating status, power conditions, and battery performance, helping ensure reliable operation and timely maintenance.

The Toshiba 4300 UPS is a three phase, double conversion UPS system with small footprint to maximize free space; with zero rear clearance requirement and complete front access

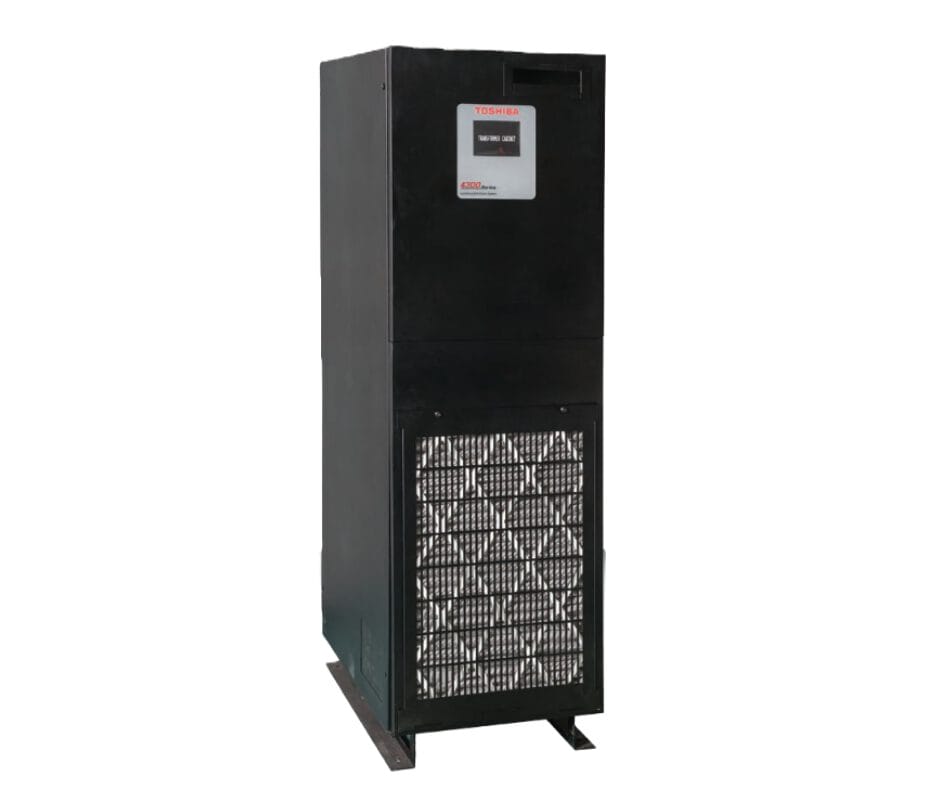

Line-Up-&-Match with Toshiba’s 4300 UPS. Hot-Swappable Battery Packs for Tool-Free Battery Replacement.

Multiple Battery Cabinets

A maximum of two Toshiba 4300 Battery Cabinets may be connected in parallel to a Toshiba 4300 Series UPS. DC backup source cabinets that are not lineup-and-match units may be combined to extend UPS battery runtime. These external battery cabinets are typically connected using a bus configuration or a single-point DC connection located outside the UPS system..

Battery Runtime & Configuration

Offering flexible battery configurations to support a wide range of runtime requirements. Battery runtime depends on UPS capacity, load level, power factor, and the number of connected battery cabinets. The system supports both lineup-and-match Toshiba battery cabinets and external DC battery solutions for extended backup duration.

Toshiba 4300 Battery Configuration Options

Battery ConfigurationSupported SetupCustomer Benefit
Internal Battery systemHigh-voltage DC battery designEfficient energy delivery and reliable short-duration backup
Toshiba 4300 Battery CabinetUp to two cabinets in parallelExtended runtime with factory-matched components
External DC Battery CabinetsBus or single-point DC connectionCustom runtime expansion for longer outages
Lineup & Match CabinetsDirect integration with UPSSimplified installation and clean system layout

Refer to your Toshiba 4300 Manual for more details.

Not sure which Toshiba UPS fits your needs? Talk to QPS and get a customized quote.

Request Pricing & Availability →

Name(Required)
Email(Required)
Tell us what you need your UPS to protect, and we’ll help you find the right solution.

Technical Specs

  • Power Rating: 30kVA & 50kVA
  • Power Factor: 0.9 output
  • Voltage: 208/120 In & out
  • Topology: True on-line double conversion

Features

  • Zero rear clearance required
  • Improved efficiency across entire load range
  • Small footprint
  • Enhanced remote monitoring

Documentation

Options

  • Line-Up-&-Match Battery Cabinet
  • Line-Up-&-Match Auxiliary Cabinets with Transformer & Maintenance bypass switch
  • Monitoring options
