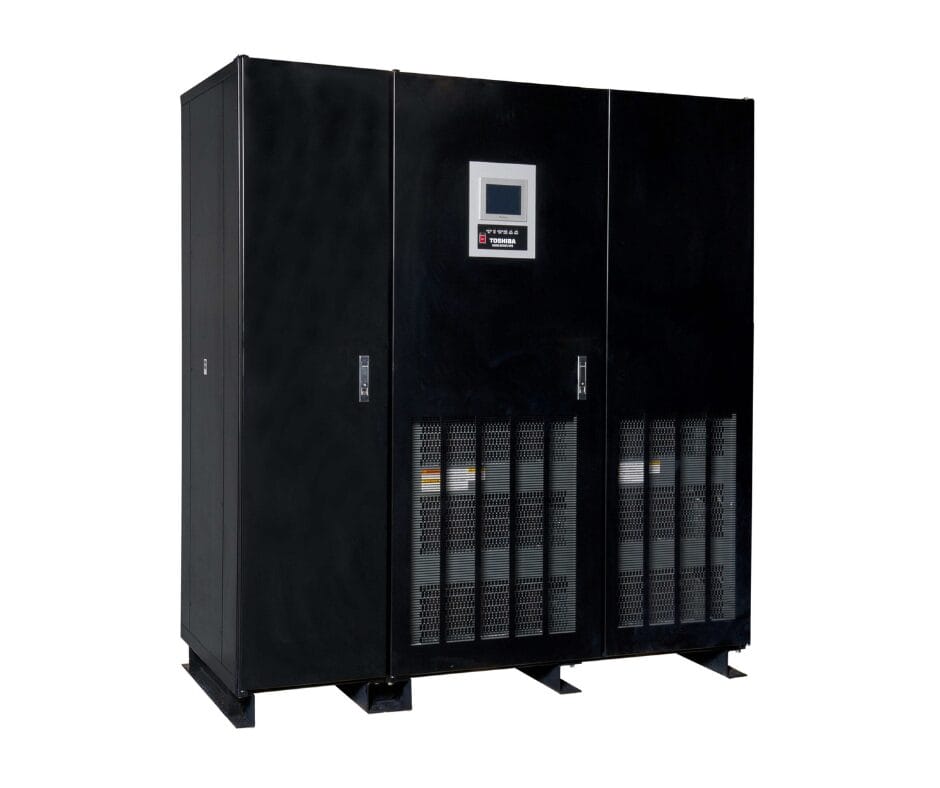

Toshiba G9000

Model 9000

Continuous + Clean Power Delivery= High Reliability & Operational Efficiency

Three phase UPS system with Digital Signal Processor (DSP) control, all IGBT technology, and the ability to parallel units to 8MW. Available with both dual-input and single input feed, electronic battery isolation, and transformerless design. The G9000 boasts an industry leading 97% true online efficiency. Even at 20% load, the Toshiba G9000 remains at 94% or more efficient, making it an excellent choice for N+1 solutions.

Scalable and Parallel-Ready

Designed for flexibility, the G9000 supports parallel configurations of up to 8 units, allowing facilities to expand capacity and implement N+1 redundancy without additional switchgear. This makes it easy to scale your UPS system as your power demands grow, while maintaining optimal efficiency and reliability across your operation..

Advanced Interface & Monitoring

An integrated LCD/LED operator interface provides clear status indicators, fault displays, and operational data — helping technicians monitor voltage, frequency, battery status, and fault conditions directly at the UPS.

Flexible Battery Cabinet Options

Offers external battery cabinet support, enabling customized runtime solutions to match your critical load requirements. These cabinets allow you to extend backup duration and ensure your operations remain powered during outages. Combined with front-access serviceability and monitoring options, the UPS provides a complete, maintainable, and high-performance power solution.

Reliable, Scalable Critical Power

Designed for 480V three-phase applications, the G9000 provides exceptional efficiency, unity power factor output, and scalable parallel redundancy—making it an ideal solution for data centers, healthcare facilities, industrial plants, and large infrastructure environments.

Toshiba G9000 Series UPS — 100 – 750 kVA Comparison Chart

Category100 kVA T90S3S10KS6XSN2160 kVA T90S3S16KS6XSN2225kVA T90S3S22KS6XSN2300 kVA T90S3S30KS6XSN500 kVA T90S3S50KS6XSN650 kVA T90S3S65KS6XSN750 kVA T90S3S75KS6XSN1050kVA T90S3S01MS6XSN
TopologyTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPSTrue On-Line, Double Conversion UPS
Input Voltage480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground
Input Voltage Range+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)+15 % / −20 % (No Battery)
Input Power Factor≥ 0.99≥ 0.99≥ 0.99≥ 0.99≥ 0.99≥ 0.99≥ 0.99≥ 0.99
Input Current THD< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load< 3 % @ 100 % Load
Output Voltage480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground480 V, 3-Phase, 3-Wire + Ground
Output Power Factor0.9 Lagging0.9 Lagging0.9 Lagging1.0 Unity1.0 Unity1.0 Unity1.0 Unity1.0 Unity
Efficiency – Full Load96.6 %96.4 %96.8 %~97 %~97 %~97 %~97 %96.8 %
Efficiency @ 25 % Load≥ 94.2%≥ 95.10%≥ 95.7%≥ 94.4 %≥ 94.8 %≥ 95.4 %≥ 95.5 %≥ 96.3%
Overload Capacity (Inverter)125 % for 2 min; 150 % for 60 s125 % for 2 min; 150 % for 60 s125 % for 2 min; 150 % for 60 s125 % for 10 min; 150 % for 60 s125 % for 10 min; 150 % for 60 s125 % for 10 min; 150 % for 60 s125 % for 10 min; 150 % for 60 s125 % for 10 min; 150 % for 60 s
Dimensions (W × D × H)27.6″ x 32.8″x 80.6″27.6″ x 32.8″x 80.6″ 35.4″× 32.8″ × 80.6″51.2″ × 32.7″ × 80.7″70.9″ × 32.7″ × 80.7″90.6″ × 32.7″ × 80.7″90.6″ × 32.7″ × 80.7″118.2″ x 35.5″ X 80.7″
Weight772lbs (350 kg)860 lbs (390 kg)1080 lbs (490kg)~2260 lbs (1025 kg)~3360 lbs (1525 kg)~4250 lbs (1928 kg)~4250 lbs (1928 kg)6283lbs (2850 kg)
Operating Temp Range0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)0 – 40 °C (32 – 104 °F)
Parallel CapabilityUp to 8 unitsUp to 8 unitsUp to 8 unitsUp to 8 unitsUp to 8 unitsUp to 8 unitsUp to 8 unitsUp to 8 units
Monitoring OptionsSNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4SNMP/Web – RemotEye 4
Warranty3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries3-Year On-Site UPS / 2-Year Batteries

Refer to your Toshiba G9000 UPS Manual for more details.

Not sure which Toshiba UPS fits your needs? Talk to QPS and get a customized quote.

Request Pricing & Availability →

Name(Required)
Email(Required)
Tell us what you need your UPS to protect, and we’ll help you find the right solution.

Technical Specs

  • Power Rating: 80, 100, 160, 225, 300, 500, & 750kVA
  • Output Power Factor: .9 up to 225kVA, 1.0 (Unity) 300-750kVA
  • Voltage: 480
  • Topology: True On-Line Double Conversion UPS

Features

  • IGBT Technology
  • Parallel up to eight units
  • Smallest footprint & highest power density in industry
  • SNMP/Web based monitoring

Documentation

Options

  • Batteries & Flywheels
  • Tie Cabinet
  • Maintenance Bypass Cabinets
  • Power Distribution Units
  • Monitoring Options
