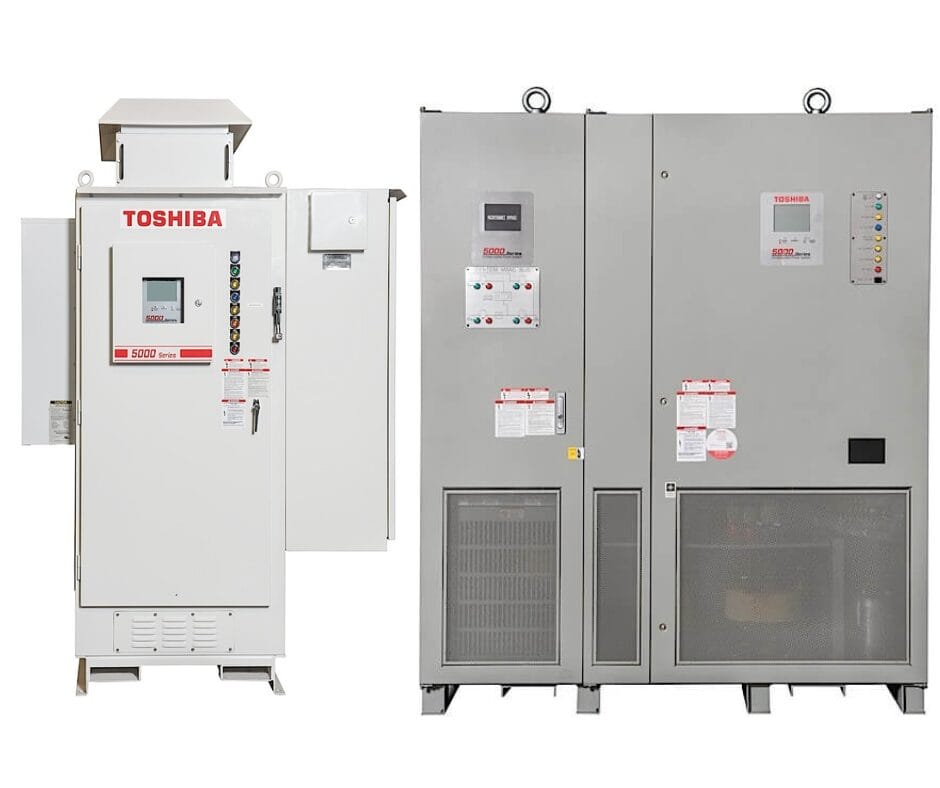

Toshiba 5000 (Discontinued)
Model 5000 3P1 & Nema 3R
Industrial-Grade Components+ Integrated Surge Protection= Ideal for Harsh Environments
the Toshiba Industrial 5000 Series UPS now offers two versatile configurations: the Three-Phase Input, Single-Phase Output (3P1) Solution and the NEMA 3R Solution for harsh and outdoor environments.
Both models are built with industrial-grade components designed for a 20-year operational lifespan and include integrated surge protection for superior reliability.
NEMA 3R Battery Backup
The Toshiba 5000 Series N3R UPS is a rugged industrial-grade, outdoor-ready UPS with NEMA 3R protection, online double-conversion VFI technology, and flexible battery options, delivering reliable backup power for mining, manufacturing, oil & gas, and harsh environments.

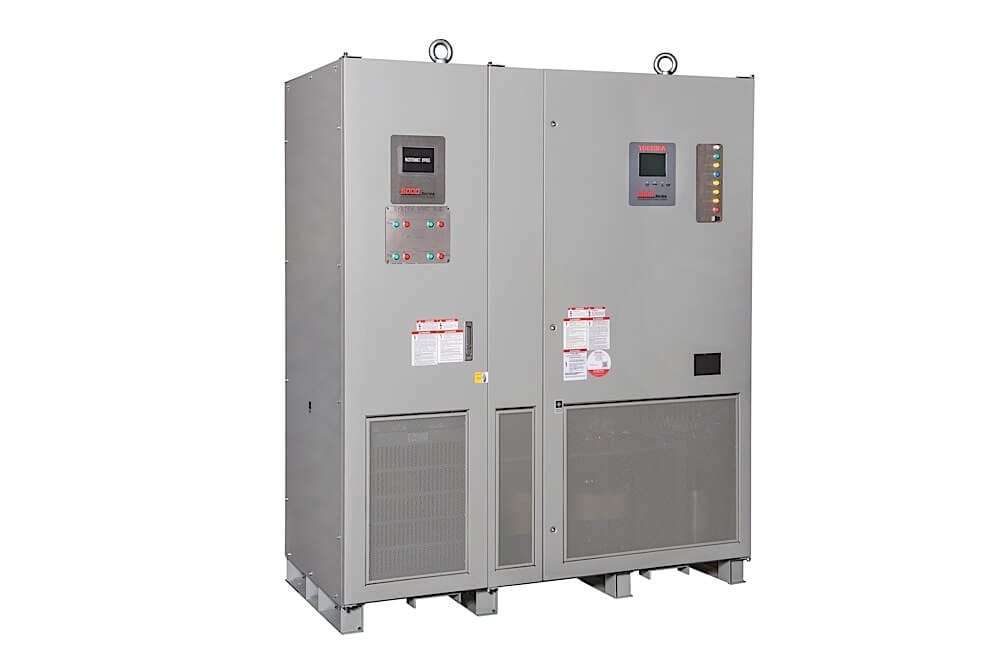

3P1 INDUSTRIAL UPS
The Toshiba 5000 Series 3P1 UPS is a robust industrial‑grade uninterruptible power supply featuring true online double‑conversion VFI technology with a three‑phase input and single‑phase output — ideal for petrochemical, oil & gas, mining, and wastewater applications. Designed with industrial‑rated components for long life, integrated maintenance bypass, and advanced monitoring including RemotEye® 4, it delivers reliable backup power and system visibility for demanding industrial environments.
Why Environment Matters
The environment where a UPS is installed plays a critical role in its performance, reliability, and lifespan. Exposure to extreme temperatures, moisture, dust, vibration, and unstable power conditions can significantly reduce the effectiveness of standard UPS systems.
Toshiba 5000 Series Industrial UPS Comparison
The Toshiba 5000 Series delivers flexible voltage options, integrated maintenance bypass, surge protection, and scalable battery runtime. These UPS systems are ideal for oil & gas, mining, manufacturing, transportation, water/wastewater, and harsh industrial locations where downtime is not an option.
Use the comparison chart below to determine which Toshiba 5000 Series UPS best fits your application, environment, and power requirements..
Toshiba 5000 Series UPS — Side-by-Side Feature
| Feature / Specification | 3P1 (Indoor) | N3R (Outdoor) |
| Configuration Type | 3-Phase Input, Single-Phase Output | 3-Phase Input & 3-Phase Output |
| Topology | True Online Double-Conversion | True Online Double-Conversion |
| IGBT Power Technology | ✔ Industrial-Grade All-IGBT | ✔ Industrial-Grade All-IGBT |
| Industrial Components (20-year design life) | ✔ | ✔ |
| Standard Input Voltage | 480 V Three-Phase | 208/120 or 480 V Three-Phase |
| Standard Output Voltage | 120 V Single-Phase | 208/120 V or 480/277 V Three-Phase |
| Operating Temp. Range | 0–40°C (32–104°F) | -10–50°C (14–122°F) |
| Battery DC Link | 120 VDC (3P1) | 288 VDC (N3R) |
| RemotEye® 4 Monitoring Support | Optional | Optional |
| Maintenance Bypass Switch (MBS) | Included on inputs | Included on inputs |
| Typical Industries | Petrochemical, Oil & Gas, Chemical Plants | Mining, Water/Wastewater, Transportation, Outdoor Sites |
| Warranty | 3-Year On-Site | 3-Year On-Site |
| Optional Upgrades | Isolation Transformers, External Battery Systems | Dual Input, External Batteries, Transformers, PDUs |
Refer to your Toshiba 5000 3P1 UPS Manual & Toshiba 5000 N3R UPS Manual for more details.
Not sure which Toshiba UPS fits your needs? Talk to QPS and get a customized quote.
Technical Specs
- Power Rating: 20, 30 & 50kVA
- Output Power Factor: .9
- Voltage: 208 with options for 600V, 480V, 120V
- Topology: True double-conversion online UPS
Features
- IGBT technology
- TVSS included on Primary and Bypass inputs
- Integrated Rotary MBS
- Monitoring options
Options
- Internal Batteries
- Internal Transformers
- Dual Input Feed
- Monitoring Options
- Remote Status Alarm Panel
Need to replace your Toshiba 5000?
