Toshiba 3000 SP
Model 3000 SP
Compact + Hot Swappable Battery Modules= Easy Maintenance & High Performance

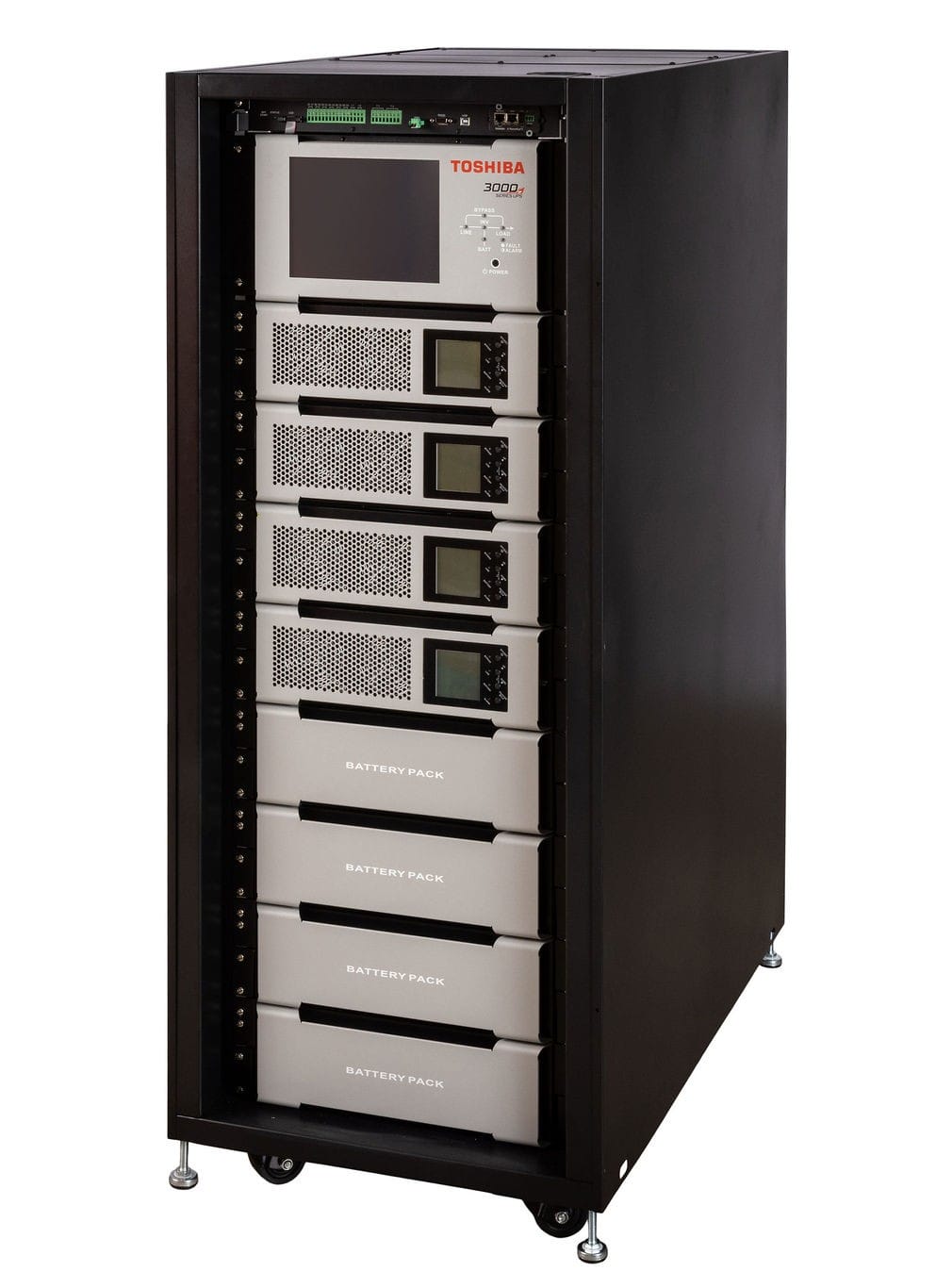

The Toshiba 3000 SP Series is a modular, online double-conversion UPS system designed for high performance and reliability in critical environments. The 3000 SP delivers efficient Voltage and Frequency Independent (VFI) operation for continuous protection. Its compact, hot-swappable design supports simplified maintenance and easy expansion. Available in multiple capacities, the system includes ECO Mode for increased energy savings and features embedded RemotEye 5 for advanced remote monitoring and control. Ideal for small to medium-sized applications requiring scalable, dependable backup power.
UPS Power Module

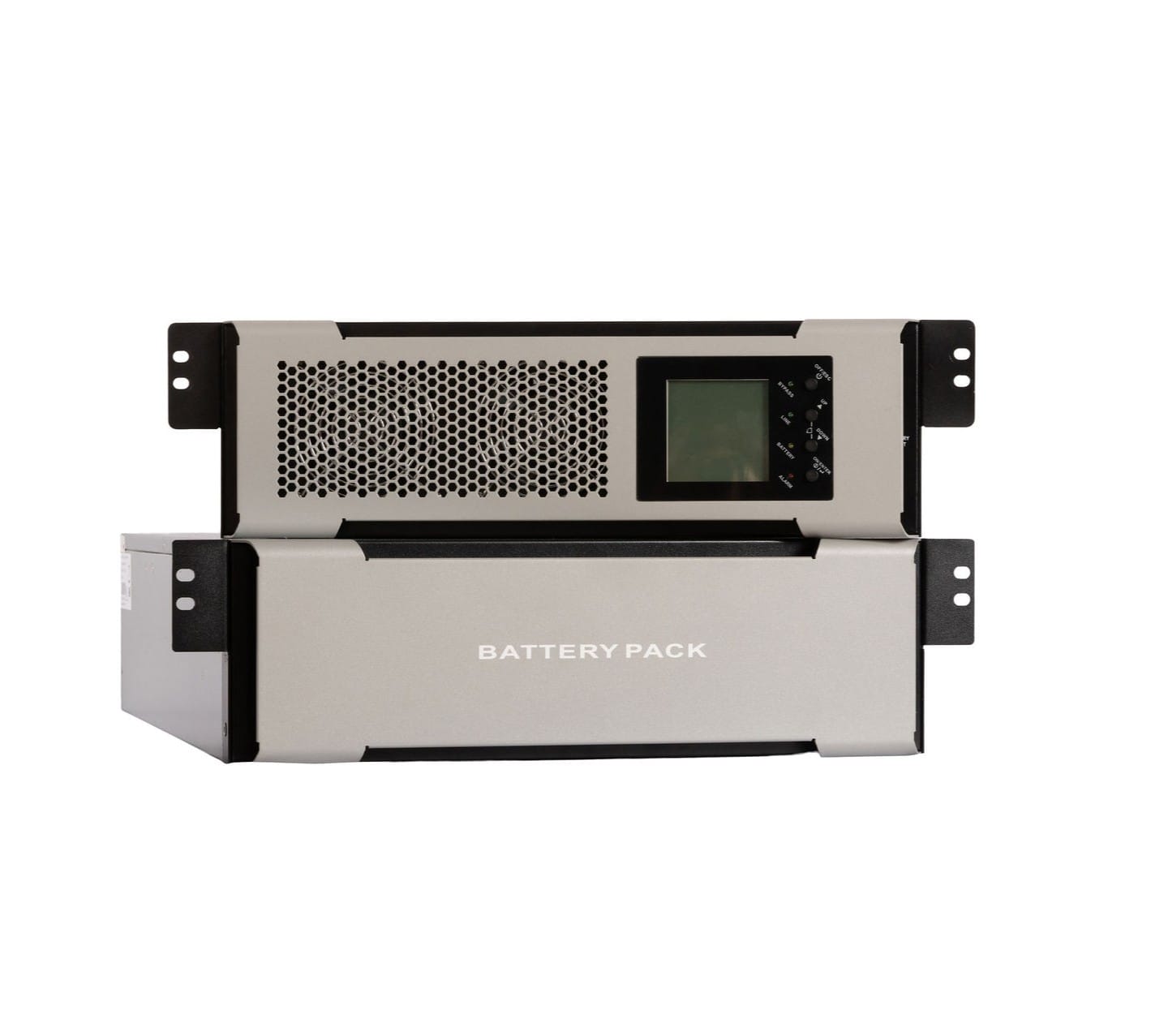

Modular architecture that allows for flexible scalability and easy maintenance. Each unit supports multiple hot‑swappable power and battery modules, enabling businesses to expand capacity or replace components without downtime.
High Efficiency & ECO Mode Operation
Engineered for maximum energy efficiency, reducing operating costs while maintaining full power protection. Its ECO Mode enables up to 98% energy efficiency, allowing the UPS to deliver clean, regulated power to critical loads while minimizing energy loss.
Protocols & Connectivity
Offers advanced communication and monitoring capabilities, allowing seamless integration into modern IT and industrial environments. Its built-in connectivity protocols provide real-time system monitoring, remote management, and automated alerts to protect critical infrastructure.
Specifications & Models
The Toshiba 3000 SP Series UPS is designed for flexibility and scalability, offering a range of power capacities and configurations to meet diverse industrial, commercial, and IT demands. Each model delivers reliable, high-quality power with modular expandability and hot-swappable battery modules.
| Model | Capacity (kVA / kW) | Modules | Typical Runtime |
| 30C0D006KHXH | 6 kVA / 6 kW | 1 UPS + 1 Battery | ~7 min @ full load |
| 30C0D012KHXH | 12 kVA / 12 kW | 2 UPS + 2 Battery | ~7 min |
| 30C0D018KHXH | 18 kVA / 18 kW | 3 UPS + 3 Battery | ~7 min |
| 30C0D024KHXH | 24 kVA / 24 kW | 4 UPS + 4 Battery | ~7 min |
Refer to your Toshiba 3000 SP UPS Manual for more details.
Not sure which Toshiba UPS fits your needs? Talk to QPS and get a customized quote.
Technical Specs
- Power Rating: 6kVA, 12kVA, 18kVA, 24kVA
- Output Power Factor: 0.99
- Voltage: 240/120 V or 208/120 V
- Topology: True double-conversion online UPS
Features

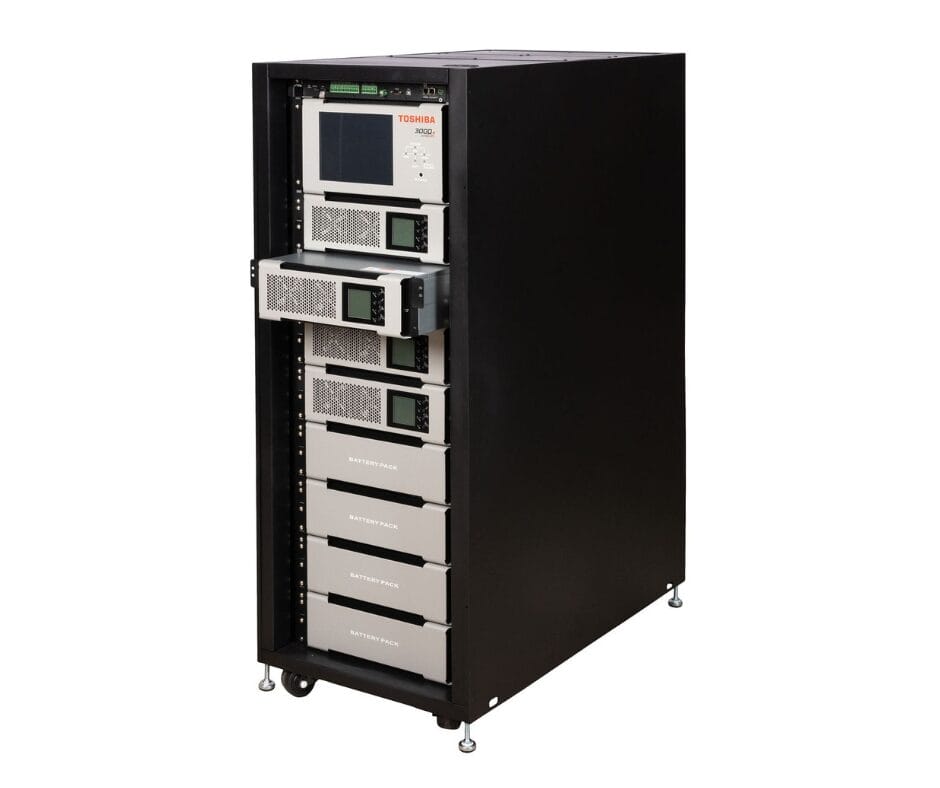

- Modular and hot-swappable for easy expansion, maintenance, or redundancy.
- 8 Universal Slots for customizable power and battery module allocation.
- Equipped with back-feed contactor and terminal block for secure connections.
- Enhanced remote monitoring with RemotEye® 5 network card
Options
- Optional Environmental Monitoring Device
- Expandable 30U rack design
- ECO mode enhances efficiency
