Toshiba 1000 Series (Discontinued)
Model 1000
Rapid Charge + Wide Input & Frequency Voltage Window = Generator Compatibility
As a double-conversion online UPS, this system delivers uninterrupted, clean single-phase power to critical equipment while continuously charging its batteries—ensuring reliable backup protection even during utility power failures
Efficiency Optimizer Function
The 1000 Series increases cost efficiency by minimizing power losses and reducing overall energy consumption. It automatically switches between bypass and online operating modes based on utility power conditions, ensuring optimal performance and reliable power protection.
Communication Card

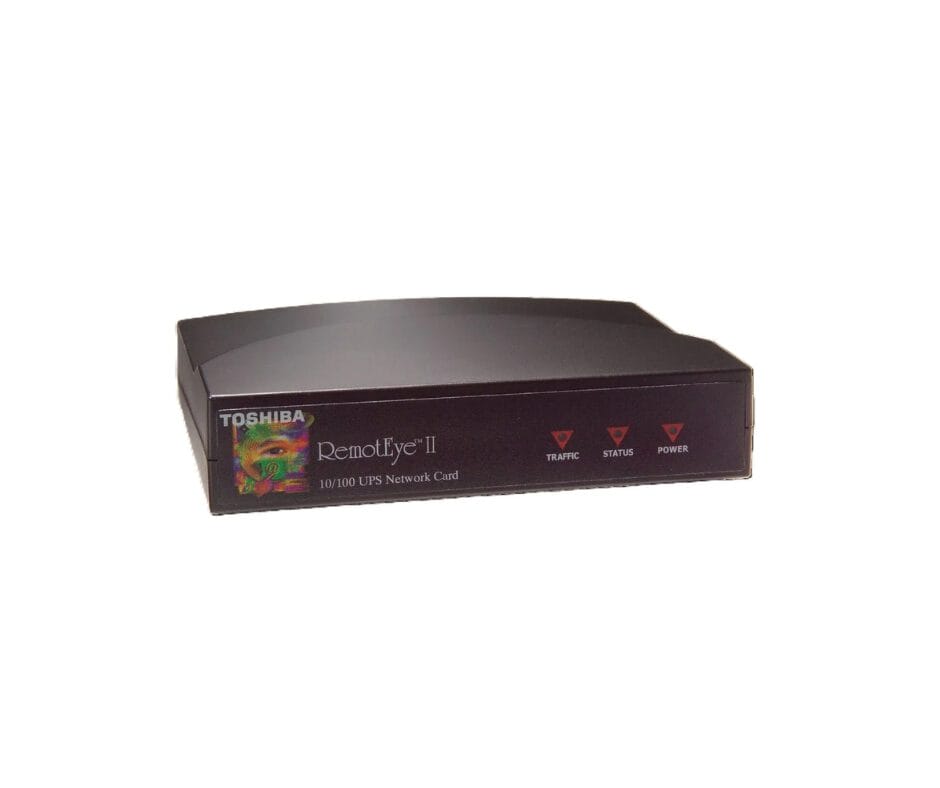

An optional SNMP/Web network card can be installed in the interface slot, enabling the RemotEye II to remotely monitor and manage the UPS system over a local network or the internet.
Reliable Single Phase Power Protection

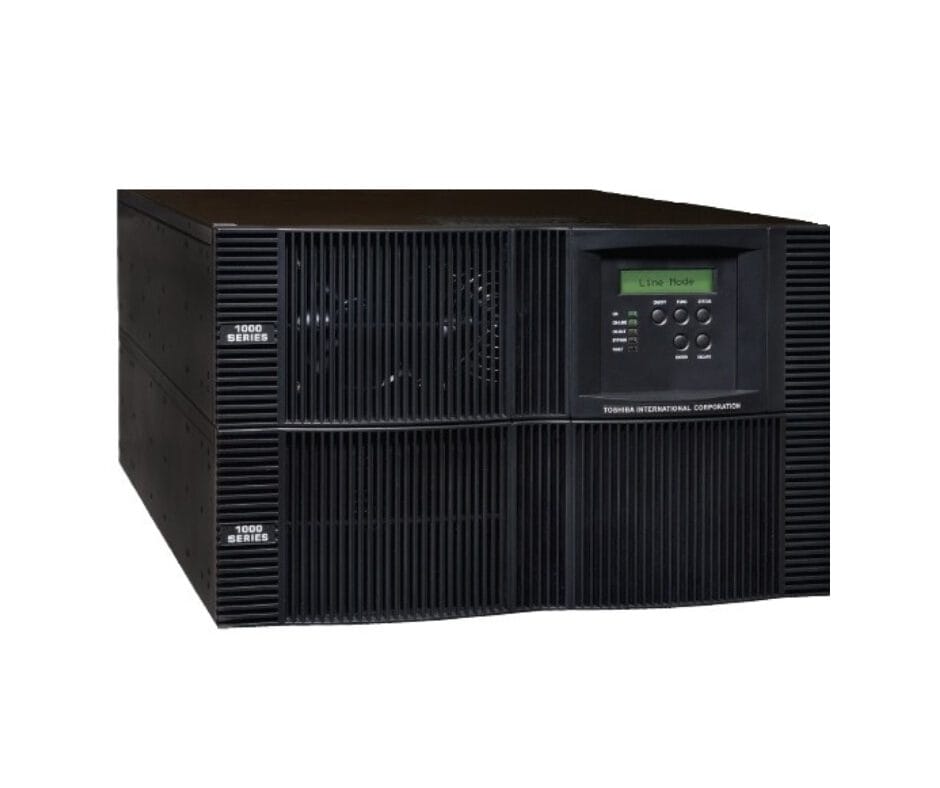

Provides reliable single-phase power protection across a flexible range of 1 kVA to 6 kVA, supporting a wide variety of critical loads. The 6000 VA model features a modular design consisting of a Power Module and Battery Pack, each housed in a 3U rack-mount enclosure. Input power is hardwired directly to the UPS power input, ensuring a secure and dependable installation for mission-critical applications
Understand Control Panel Functions at a Glance
Equipped with five LED indicators and a clear LCD screen, this display provides real-time status updates and can alert users through audible alarms for enhanced monitoring and safety.
1000 1kVA-6kVA LED Behaviors
| Green | Yellow | Red |
|---|---|---|
| Fully Operational Normal or Static Bypass modes | Bypass Mode Battery Mode | Internal Errors FAULT (*audible alarm sound) |
Refer to your Toshiba 1000 Manual for Display and UPS monitoring details.
Not sure which Toshiba UPS fits your needs? Talk to QPS and get a customized quote.
Technical Specs
- Power Rating: 1 – 6 kVA
- Power Factor: 0.7 output power factor
- Topology: True on-line double conversion
Features
- Programmable Load-Shed Receptacles
- Auto-Restart & Cold Start capable
- Compatible with RemotEye II
- Rapid Charge to 90% in 4 Hours
Documentation
Need to replace your Toshiba 1000 ?
