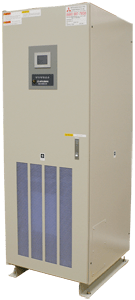

Mitsubishi 9900A on-line double conversion UPS system

Mitsubishi 9900A

Superior reliability and performance with this efficient and parallel redundant capable UPS system.  With a smaller footprint to save on floor space and modular scalability, the system offers the option of adding or removing power modules with minimal cost.  The three phase, on-line double conversion UPS system also features IGBT technology that provides many benefits such as large power capabilities and high speed switching.

Need a maintenance inspection or a battery replacement on your Mitsubishi 9900A?

Technical Specs

  • Power Rating: 80, 100, 150, & 225kVA
  • Output Power Factor: .9
  • Voltage: 480/480V Input & Output
  • On-line double conversion topology


  • IGBT converter & inverter
  • Available for parallel redundant & capacity applications
  • Internal static bypass
  • Small footprint & lightweight


  • Additional modules for parallel redundant & capacity applications (up to 4 modules)

Need a quote for an Mitsubishi 9900A?
