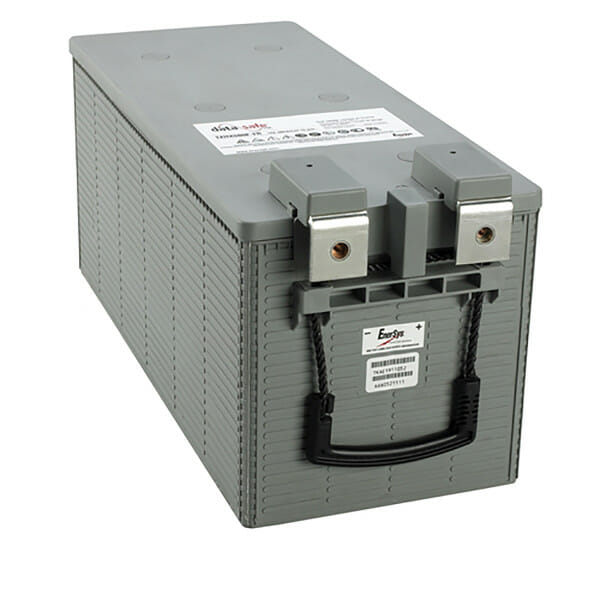

EnerSys DataSafe 12HX680F-FR UPS battery

EnerSys DataSafe 12HX680F-FR

The DataSafe 12HX680F-FR battery is a part of the EnerSys HX range of valve regulated lead acid (VRLA) batteries. This battery, the first front terminal  battery of the line, maintains its reputation of low cost and high convenience, but delivers power to high rate UPS systems. This battery’s cover and case are UL94 flame retardant polypropylene. The 12HX680F-FR was built with 5/16-18 UNC thread front access terminals. Overall, this battery allows maintenance to be safer and easier.

Need your DataSafe 12HX680F-FR UPS battery replaced?

Technical Specs

  • Number of cells: 6
  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at 25°C: 680
  • Short Circuit Current (A): 5960
  • Dimensions (inches): 21.3 x 8.4 x 9.7


  • Opposite-charge lead-calcium-tin alloy plate grids
  • Optimized electrochemistry
  • Absorbed Glass Mat Valve Regulated Lead Acid (AGM VRLA) technology
